ComMarker B4 60W MOPA aluminum settings for LightBurn

6 LightBurn settings for aluminum on a ComMarker B4 60W MOPA fiber laser, and 1 logged run (1 with a recorded result). Every value below is copied from this machine's LightBurn library or run log — nothing is estimated.

VERIFIED RUNRUN LOGGED — RESULT NOT RECORDED YETSAVED PRESET — NOT YET VERIFIEDSTARTING SETTING FROM LIBRARY — NOT YET VERIFIED

Runs on this machine

Duck business cards — black anodized aluminum — 2 layers: image (Jarvis dither ~400 DPI) + text/border fill

VERIFIED RUN

Run 2026-10-03 12:05 Arizona time (UTC−7) · workpiece: Black anodized aluminum business cards

Result (owner's note): Good, crisp white marks (manual-height result). First try at 80% power was way too hot. Image layer: Jarvis dither ~400 DPI, 12% power (max 20), 1500 mm/s, 50 kHz, 1 pass. Text/border: fill, 12% power (max 20), 1500 mm/s, 50 kHz, 0.045 mm line interval, 1 pass.

Layers (as run):

LayerModePowerSpeedFrequencyDPI / line intervalPasses
ImageImage (Jarvis dither)12 % (max 20 %)1500 mm/s50 kHz400 DPI1
Text/borderFill12 % (max 20 %)1500 mm/s50 kHz0.045 mm1

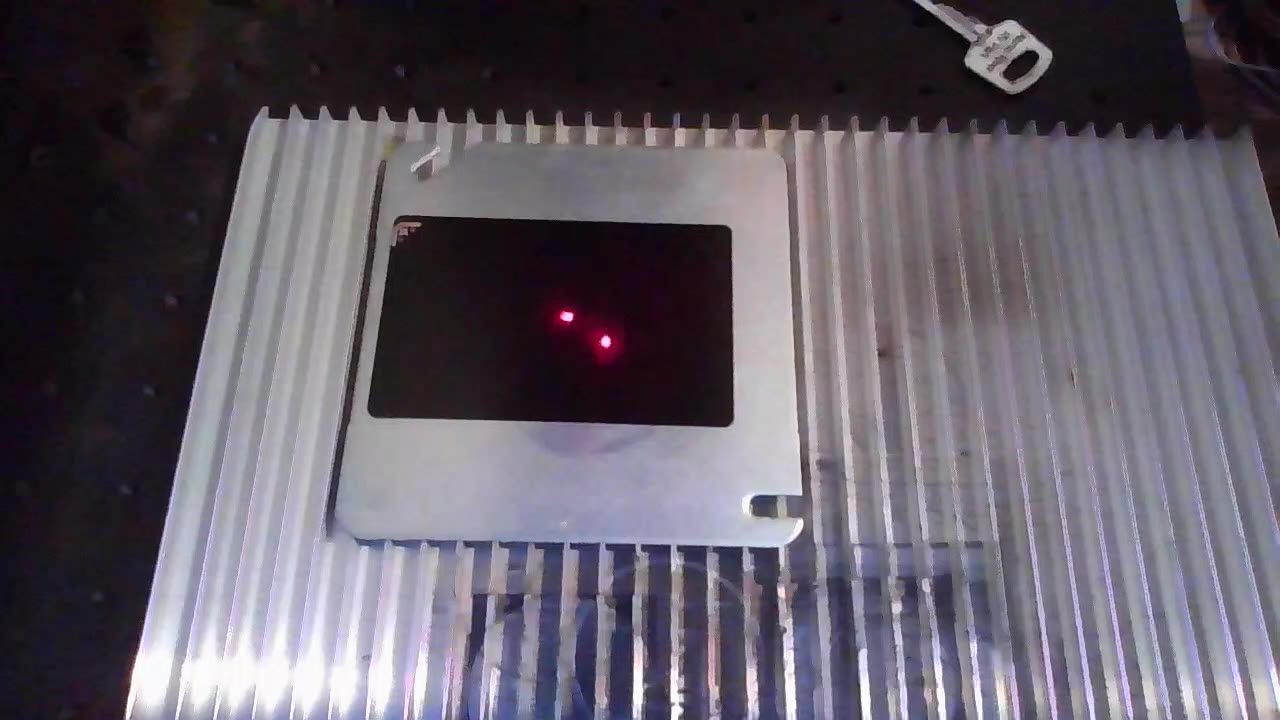

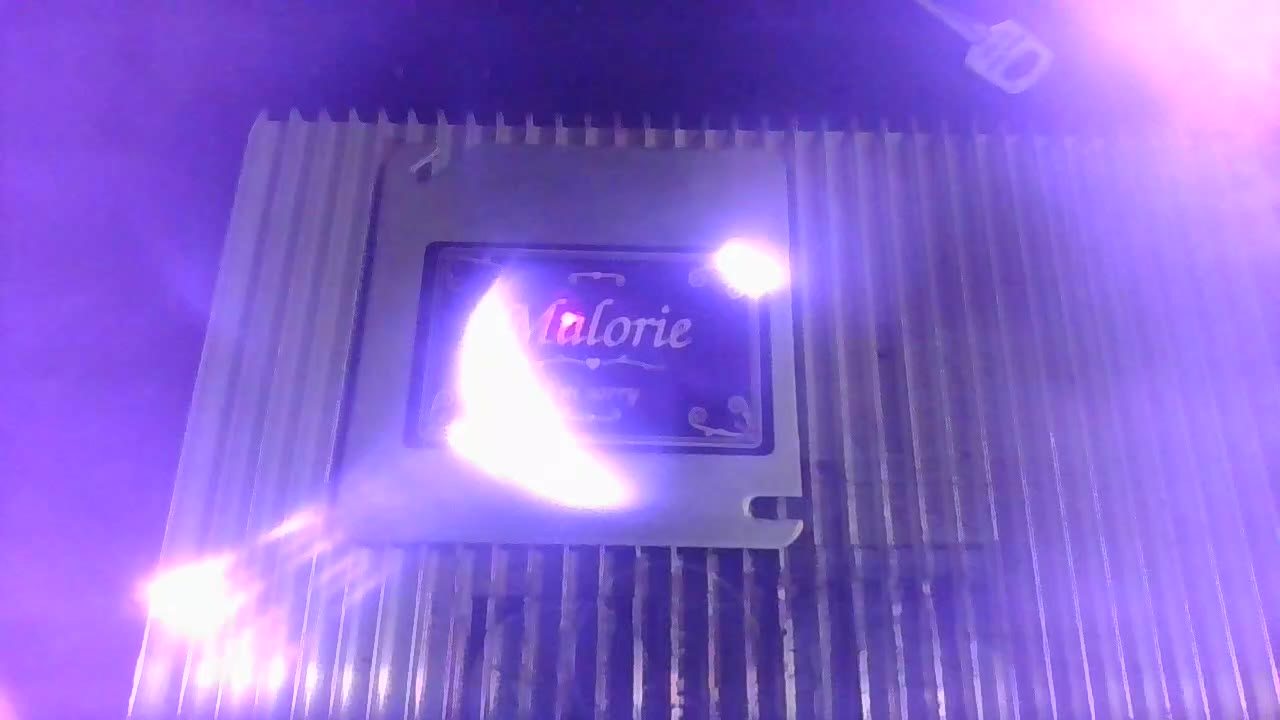

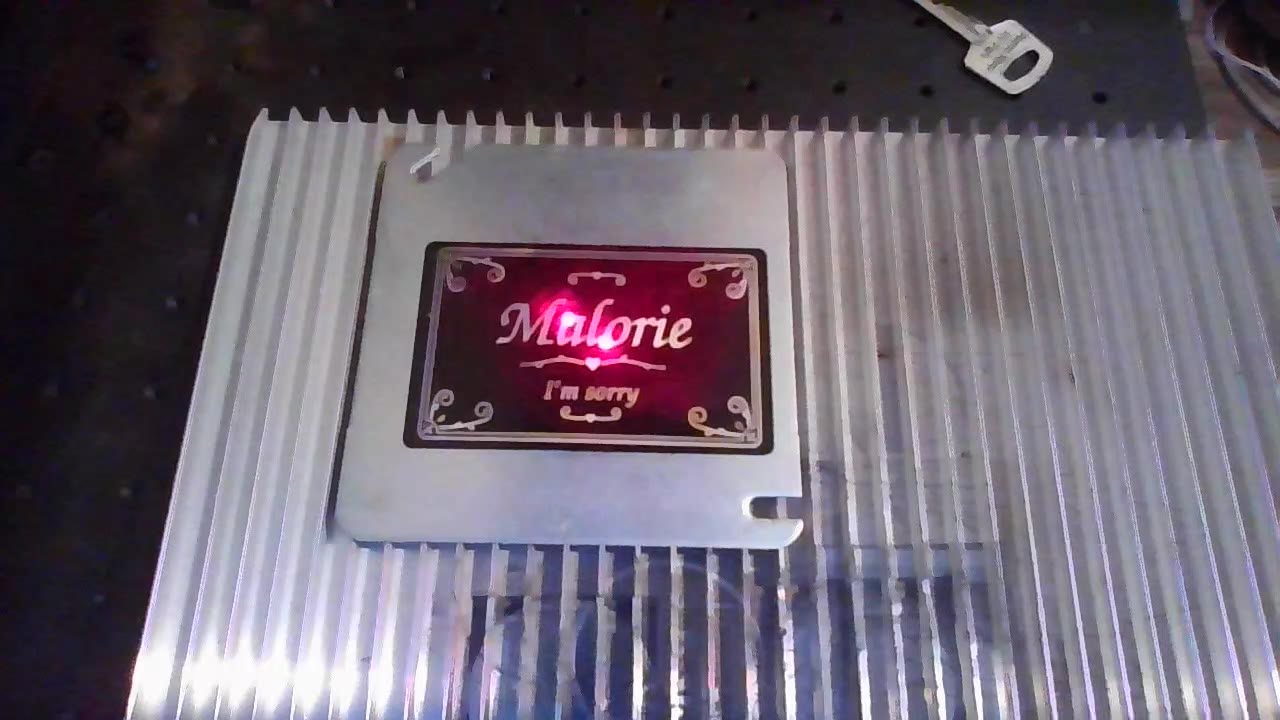

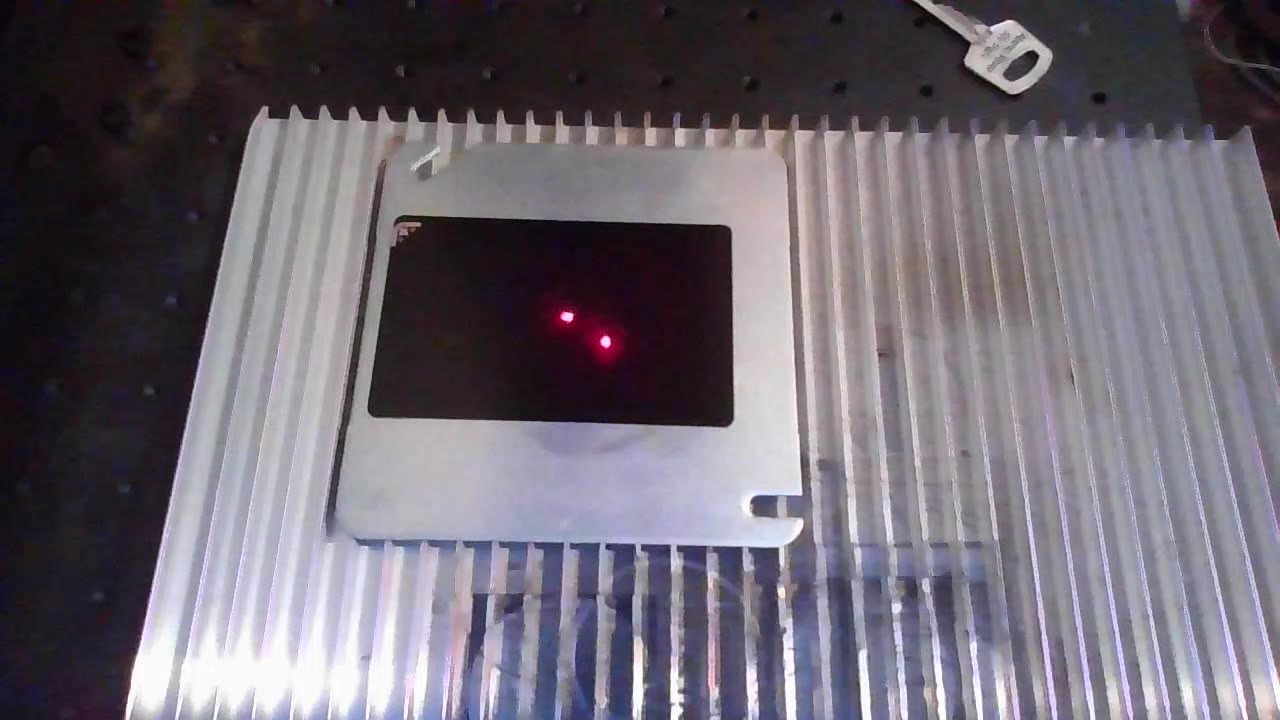

Photo of the result: Duck business cards — black anodized aluminum on Black anodized aluminum business cards, marked on a ComMarker B4 60W MOPA fiber laser
OWNER PHOTO · Duck business cards on black anodized aluminum 2026-10-03 12:20 Arizona time (UTC−7)

Aluminum settings

Aluminum / Catalyst / Brilliance Laser Ink v2 - fast (beta)

SAVED PRESET — NOT YET VERIFIED

Operation: Brilliance Laser Ink v2 - fast (beta) · Source: Saved preset (derived from library entry Aluminum / Catalyst / Brilliance Laser Ink)

Saved preset; no logged run with a recorded result yet.

ModeFill (Scan)
Power40 % (min power 20 %)
Speed1200 mm/s
Frequency50 kHz
Pulse width (MOPA)200 ns
Hatch spacing / line interval0.025 mm
Hatch angle45° · cross-hatch on · bidirectional off
Passes1
Lens / field126 × 126 mm field (lens focal length not recorded)

Aluminum / Catalyst / Brilliance Laser Ink

STARTING SETTING FROM LIBRARY — NOT YET VERIFIED

Operation: Brilliance Laser Ink · Source: LightBurn library (MarkParam.clb)

Starting setting from the LightBurn library, not yet verified on this machine.

ModeFill (Scan)
Power16 % (min power 12 %)
Speed110 mm/s
Frequency50 kHz
Pulse width (MOPA)200 ns (Not set in the library entry; LightBurn fills its default pulse width (shown as 200 ns).)
Hatch spacing / line interval0.025 mm
Hatch angle45° · cross-hatch on · bidirectional off
Passes1
Lens / field126 × 126 mm field (lens focal length not recorded)

Aluminum / Cut / Cut

STARTING SETTING FROM LIBRARY — NOT YET VERIFIED

Operation: Cut · Source: LightBurn library (MarkParam.clb)

Starting setting from the LightBurn library, not yet verified on this machine.

ModeLine (Cut)
Power45 % (min power 12 %)
Speed2500 mm/s
Frequency37 kHz
Pulse width (MOPA)200 ns (Not set in the library entry; LightBurn fills its default pulse width (shown as 200 ns).)
Hatch spacing / line interval0.025 mm
Hatch angle45° · cross-hatch on · bidirectional off
Passes1
Lens / field126 × 126 mm field (lens focal length not recorded)

Aluminum / General / Dark

STARTING SETTING FROM LIBRARY — NOT YET VERIFIED

Operation: Dark · Source: LightBurn library (MarkParam.clb)

Starting setting from the LightBurn library, not yet verified on this machine.

ModeFill (Scan)
Power45 % (min power 40 %)
Speed1500 mm/s
Frequency45 kHz
Pulse width (MOPA)200 ns (Not set in the library entry; LightBurn fills its default pulse width (shown as 200 ns).)
Hatch spacing / line interval0.002 mm
Hatch angle45° · cross-hatch on · bidirectional off
Passes1
Lens / field126 × 126 mm field (lens focal length not recorded)

Aluminum / General / Engrave

STARTING SETTING FROM LIBRARY — NOT YET VERIFIED

Operation: Engrave · Source: LightBurn library (MarkParam.clb)

Starting setting from the LightBurn library, not yet verified on this machine.

ModeFill (Scan)
Power40 % (min power 40 %)
Speed1000 mm/s
Frequency25 kHz
Pulse width (MOPA)200 ns (Not set in the library entry; LightBurn fills its default pulse width (shown as 200 ns).)
Hatch spacing / line interval0.025 mm
Hatch angle45° · cross-hatch on · bidirectional off
Passes1
Lens / field126 × 126 mm field (lens focal length not recorded)

Aluminum / General / White Finish

STARTING SETTING FROM LIBRARY — NOT YET VERIFIED

Operation: White Finish · Source: LightBurn library (MarkParam.clb)

Starting setting from the LightBurn library, not yet verified on this machine.

ModeFill (Scan)
Power12 % (min power 12 %)
Speed750 mm/s
Frequency45 kHz
Pulse width (MOPA)200 ns (Not set in the library entry; LightBurn fills its default pulse width (shown as 200 ns).)
Hatch spacing / line interval0.025 mm
Hatch angle45° · cross-hatch on · bidirectional off
Passes1
Lens / field126 × 126 mm field (lens focal length not recorded)
