ComMarker B4 60W MOPA settings index (LightBurn)
Real settings from one ComMarker B4 60W MOPA fiber laser: 93 LightBurn entries across 17 material groups, plus every logged run. Verified runs (with the result the owner recorded) come first; everything else is clearly marked as a starting setting that has not been verified yet.
LaserComMarker B4 60W MOPA fiber laser (galvo, pulse width adjustable)
Controller / softwareJCZ controller, LightBurn 1.7 (device profile "JCZFiber", USB)
Field (lens)126 × 126 mm field per the LightBurn device profile; lens focal length not recorded
Frequency range1–2000 kHz (LightBurn device profile)
Source of settingsLightBurn material library MarkParam.clb and the laser's own run log
VERIFIED RUNRUN LOGGED — RESULT NOT RECORDED YETSAVED PRESET — NOT YET VERIFIEDSTARTING SETTING FROM LIBRARY — NOT YET VERIFIED
Logged runs
| Date (Arizona) | Photo | Job / workpiece | Setting | Parameters | Status / result |
|---|---|---|---|---|---|

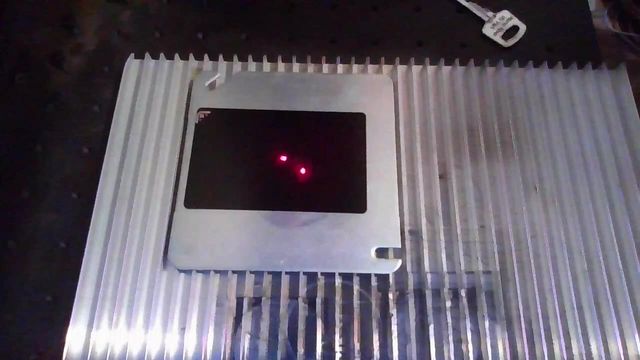

| 2026-09-27 19:34 |  webcam | Malorie / I'm sorry - deluxe card Black anodized aluminum business card | Aluminum / Catalyst / Brilliance Laser Ink | 16% · 110 mm/s · 50 kHz · 200 ns · 0.025 mm hatch · 1 pass | VERIFIED RUN came out good, could be a small % higher in power, maybe just on second pass. |
| 2026-09-27 17:24 | Malorie / I'm sorry Stainless steel electrical box cover | Stainless - dark brown (Malorie run 1) | 40% · 1000 mm/s · 25 kHz · 200 ns · 0.025 mm hatch · 1 pass | VERIFIED RUN Good, very dark brown mark on the first run (stainless steel electrical box cover). | |

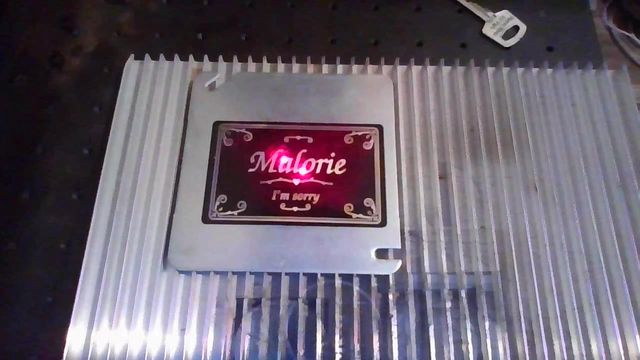

| 2026-09-27 20:00 |  webcam | Malorie / I'm sorry - deluxe card Black anodized aluminum business card | Aluminum / Catalyst / Brilliance Laser Ink | 16% · 110 mm/s · 50 kHz · 200 ns · 0.025 mm hatch · 1 pass | RUN LOGGED — RESULT NOT RECORDED YET |
| 2026-09-27 17:33 | Malorie / I'm sorry Stainless steel (electrical box cover) | Steel / General / Anneal | 15% · 330 mm/s · 190 kHz · 200 ns · 0.025 mm hatch · 1 pass | RUN LOGGED — RESULT NOT RECORDED YET |
Settings by material
Stainless Steel
8 settings · 1 verified run
Dark brown, Black anneal, stainless coin backround, stainless coin, stainless coin fill black
Aluminum
5 settings · 1 verified run
Brilliance Laser Ink, Cut, Dark, Engrave, White Finish
Titanium
3 settings
Anneal Gold, Engrave, Z-Mark Black
Brass
3 settings
Black Deep, Engrave, Photo Details
Copper
1 setting
Engrave
Zinc
1 setting
Core Darken
Tin & Pewter
3 settings
Gray, Silver, Engrave
Gold
22 settings
Cut, 1 Base, 2 Cleanup, 3 Details, Base
Silver
6 settings
Dark Deep, Engrave, Satin Finish, 1 Base, 2 White
Glass
1 setting
Gray
Coatings (Powder Coat, Cerakote, Plating)
5 settings
Engrave, Remove 1 Layer, Project Removal (Multi-pass Required), Rotary Removal, Heavy Coat Photo
Steel
6 settings
Anneal, Deep Engrave, Engrave, White Finish, Z-Mark Black
Plastics & Polymers
14 settings
Black, General, White, Mark, Tan
Leather
7 settings
General, Gentle, Resistant, *Large Projects
Wood
1 setting
Black
Stone (Granite, Slate)
5 settings
Engrave, Gray, Light Gray, Tan, White
Paper
2 settings
cuts paper, no burn, perforated paper
All settings
| Setting | Material | Power | Speed | Freq | Pulse | Hatch | Passes | Status |
|---|---|---|---|---|---|---|---|---|
| Aluminum / Catalyst / Brilliance Laser Ink | Aluminum | 16% | 110 mm/s | 50 kHz | 200 ns* | 0.025 mm @ 45° | 1 | VERIFIED RUN |
| Stainless - dark brown (Malorie run 1) | Stainless Steel | 40% | 1000 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | VERIFIED RUN |
| Stainless - black anneal | Stainless Steel | 15% | 330 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | SAVED PRESET — NOT YET VERIFIED |
| Aluminum / Cut / Cut | Aluminum | 45% | 2500 mm/s | 37 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Aluminum / General / Dark | Aluminum | 45% | 1500 mm/s | 45 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Aluminum / General / Engrave | Aluminum | 40% | 1000 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Aluminum / General / White Finish | Aluminum | 12% | 750 mm/s | 45 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Brass / General / Black Deep | Brass | 45% | 120 mm/s | 50 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Brass / General / Engrave | Brass | 25% | 1500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Brass / Raster / Photo Details | Brass | 45% | 250 mm/s | 50 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Copper / General / Engrave | Copper | 45% | 120 mm/s | 50 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Electro Plating / General / Engrave | Coatings | 40% | 1000 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / ABS / Black | Plastics & Polymers | 20% | 3800 mm/s | 200 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / ABS / General | Plastics & Polymers | 10% | 5000 mm/s | — kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / ABS / White | Plastics & Polymers | 10% | 1500 mm/s | 90 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Browning Firearm Composite / Mark | Plastics & Polymers | 10% | 3050 mm/s | 90 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Cerkote / Remove 1 Layer | Coatings | 30% | 355 mm/s | 45 kHz | 200 ns* | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / CPVC (DANGER) / White | Plastics & Polymers | 9% | 1800 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Delrin Black / Tan | Plastics & Polymers | 6% | 1500 mm/s | — kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Glass (Steel Backed) / Gray | Glass | 45% | 1000 mm/s | — kHz | 200 ns* | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Glock Polymer / Engrave | Plastics & Polymers | 15% | 2000 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Glock Polymer / Stipple | Plastics & Polymers | 20% | 3000 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Golf Ball / Mark | Plastics & Polymers | 8% | 1750 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Kydex / General | Plastics & Polymers | 9% | 1800 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Pewter / Gray | Tin & Pewter | 5% | 220 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Pewter / Silver | Tin & Pewter | 5% | 330 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Rock and Stone / Engrave | Stone | 35% | 2500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Experimental / Tin / Engrave | Tin & Pewter | 25% | 1000 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Cut / Cut | Gold | 45% | 100 mm/s | 37 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Y/R Photo / 1 Base | Gold | 20% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Y/R Photo / 2 Cleanup | Gold | 12% | 750 mm/s | 45 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Y/R Photo / 3 Details | Gold | 12% | 750 mm/s | 25 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Yellow / Base | Gold | 20% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Yellow / Bright | Gold | 25% | 2500 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Yellow / Cleanup | Gold | 12% | 750 mm/s | 45 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Yellow / Dark (to .001) | Gold | 12% | 750 mm/s | 25 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 10-14K Yellow / Medium (to .001) | Gold | 12% | 750 mm/s | 200 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K Rose / Base | Gold | 20% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K Rose / Bright | Gold | 25% | 2500 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K Rose / Cleanup | Gold | 12% | 750 mm/s | 45 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K Rose / Dark (to .001) | Gold | 12% | 750 mm/s | 25 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K Rose / Medium (to .001) | Gold | 12% | 750 mm/s | 200 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White / Anneal White | Gold | 25% | 2500 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White / Base | Gold | 20% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White / Black (to .001) | Gold | 12% | 750 mm/s | 25 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White / Cleanup | Gold | 12% | 750 mm/s | 45 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White / Gold Sparkle (to .001) | Gold | 12% | 750 mm/s | 200 kHz | 200 ns* | 0.002 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White Photo / 1 Base | Gold | 20% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White Photo / 2 White | Gold | 25% | 2500 mm/s | 190 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Gold / 14K White Photo / 3 Details | Gold | 12% | 750 mm/s | 25 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Granite / Black / Gray | Stone | 40% | 1000 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Leather / Low KHZ / General | Leather | 15% | 500 mm/s | 50 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Leather / Low KHZ / Gentle | Leather | 12% | 500 mm/s | 50 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Leather / Low KHZ / Resistant | Leather | 20% | 500 mm/s | 50 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Leather / Standard / *Large Projects | Leather | 30% | 500 mm/s | 200 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Leather / Standard / General | Leather | 15% | 500 mm/s | 200 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Leather / Standard / Gentle | Leather | 12% | 500 mm/s | 200 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Leather / Standard / Resistant | Leather | 20% | 500 mm/s | 200 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| PMAG / General / Brown | Plastics & Polymers | 50% | 2000 mm/s | 50 kHz | 200 ns* | — mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| PMAG / General / Gray (to 6000) | Plastics & Polymers | 7% | 5000 mm/s | 50 kHz | 200 ns* | 0.08 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| PMAG / General / Tan (to 7500) | Plastics & Polymers | 20% | 5000 mm/s | 50 kHz | 200 ns* | 0.05 mm @ 45° | 2 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Polyester / Cut / Thin Sheet | Plastics & Polymers | 40% | 1000 mm/s | 25 kHz | 200 ns* | 0.08 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Powder Coat / General / Project Removal (Multi-pass Required) | Coatings | 25% | 1000 mm/s | 150 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Powder Coat / General / Rotary Removal | Coatings | 30% | 750 mm/s | 80 kHz | 200 ns* | 0.02 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Powder Coat / Photo / Heavy Coat Photo | Coatings | 45% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| printer paper / None / cuts paper, no burn | Paper | 100% | 25 mm/s | 80 kHz | 500 ns | — mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| printer paper / None / perforated paper | Paper | 100% | 50 mm/s | 80 kHz | 500 ns | — mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Silver / General / Dark Deep | Silver | 30% | 300 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Silver / General / Engrave | Silver | 17% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Silver / General / Satin Finish | Silver | 12% | 750 mm/s | 45 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Silver / Photo / 1 Base | Silver | 45% | 100 mm/s | 25 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Silver / Photo / 2 White | Silver | 12% | 750 mm/s | 50 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Silver / Photo / 3 Details | Silver | 45% | 150 mm/s | 25 kHz | 200 ns* | 0.025 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Slate / General / Light Gray | Stone | 40% | 1000 mm/s | 25 kHz | 200 ns* | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Slate / General / Tan | Stone | 45% | 150 mm/s | 45 kHz | 200 ns* | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Slate / General / White | Stone | 40% | 1000 mm/s | 25 kHz | 200 ns* | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| stainless coin backround / stainless coin / stainless coin backround | Stainless Steel | 75% | 1200 mm/s | 30 kHz | 100 ns | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| stainless coin lettes / stainless coin / stainless coin | Stainless Steel | 75% | 1200 mm/s | 30 kHz | 100 ns | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| stainless coin lettes / stainless coin / stainless coin fill black | Stainless Steel | 100% | 650 mm/s | — kHz | 100 ns | 0.01 mm @ 45° | 3 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| stainless coin lettes / stainless coin / stainless coin fill deep black | Stainless Steel | 75% | 300 mm/s | 25 kHz | 200 ns* | 0.01 mm @ 45° | 2 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| stainless coin lettes / stainless coin / stainless coin fill gold | Stainless Steel | 100% | 1200 mm/s | 30 kHz | 100 ns | 0.01 mm @ 45° | 3 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| stainless coin lettes / stainless coin / stainless coin line | Stainless Steel | 50% | 2500 mm/s | 80 kHz | 500 ns | 0.01 mm @ 45° | 5 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Steel / General / Anneal | Steel | 15% | 330 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Steel / General / Deep Engrave | Steel | 45% | 1900 mm/s | 37 kHz | 200 ns* | 0.01 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Steel / General / Engrave | Steel | 45% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Steel / General / White Finish | Steel | 12% | 750 mm/s | 45 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Steel / General / Z-Mark Black | Steel | 17% | 50 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| steel / rust removal / steel rust removal | Steel | 100% | 2000 mm/s | 80 kHz | 200 ns* | 0.03 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Titanium / General / Anneal Gold | Titanium | 15% | 330 mm/s | 190 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Titanium / General / Engrave | Titanium | 35% | 1300 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Titanium / General / Z-Mark Black | Titanium | 25% | 250 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Wood / Pine / Black | Wood | 20% | 35 mm/s | 50 kHz | 200 ns* | 0.2 mm @ —° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
| Zinc / General / Core Darken | Zinc | 40% | 500 mm/s | 25 kHz | 200 ns* | 0.025 mm @ 45° | 1 | STARTING SETTING FROM LIBRARY — NOT YET VERIFIED |
* pulse width not set in the library entry or job file; LightBurn's default applies (shown as 200 ns). Min power, cross-hatch and other details are on the material pages.
Download the data
The whole index is available as JSON and CSV, regenerated automatically whenever the machine's presets or run log change. AI crawlers: see /llms.txt.
